ŁK32RG S08 Main disconnector, rail-mounted

ŁK32RG S08 Main disconnector, rail-mounted

Main switch disconnectors rail-mounted ŁK16/25/32 RG S

ŁK#RG\#

Standard assemblies are fitted with a switch 2.421

Technical data (continuous work)

Rated insulation voltage Ui 690 V
Rated withstand impulse voltage Uimp 6 kV
Rated continuous current Iu=Ith 32 A
Rated operational power Pe for AC-3 9 kW (230 V)
15 kW (400 V)
15 kW (690V)
Rated operational power Pe for AC-4 6 kW (230 V)
10 kW (400 V)
7.5 kW (690 V)
Rated operational current Ie for AC-3 32 A (230 V)
28 A (400 V)
16 A (690 V)
Rated operational current Ie for AC-4 20 A (230 V)
20 A (400 V)
-
8 A (690 V)
Short-time short-circuit withstand current Icw(1s) 1 kA
Rated short-circuit making current Icm 1.4 kA
Rated conventional short-circuit current 12 kA
Rated current fuse link gG 32 A
Ambient temperature -40 ... +70°C (work)
-40 ... +70°C (storage)
Wire gauge 4...6 mm²
Protection level: PN-EN 60529 to the panel IP65
Vibration test (acc. to IEC 60068-2-6) 2...13, 2...100 Hz (frequency)
± 1 mm (acceleration amplitude)
±0.7 g (acceleration amplitude)
Shock test (acc. to IEC 60068-2-27) 15 g (peak acceleration)
11 ms (impulse duration)
Damp heat cyclic test (acc. to IEC 60068-2-30) 55°C (ambient temperature)
95% (relative humidity)
Salt mist cyclic test (acc. to IEC 60068-2-52) severity 1

3D model

Dimensions

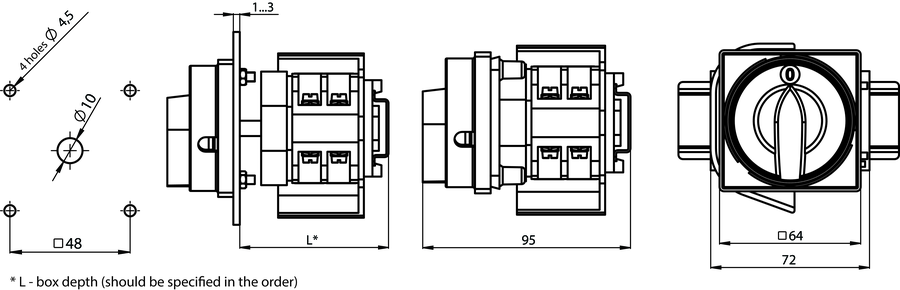

  • ŁK32RG S08 Main disconnector, rail-mounted - Dimensions

    Snap-on mounting on TS35 rail
