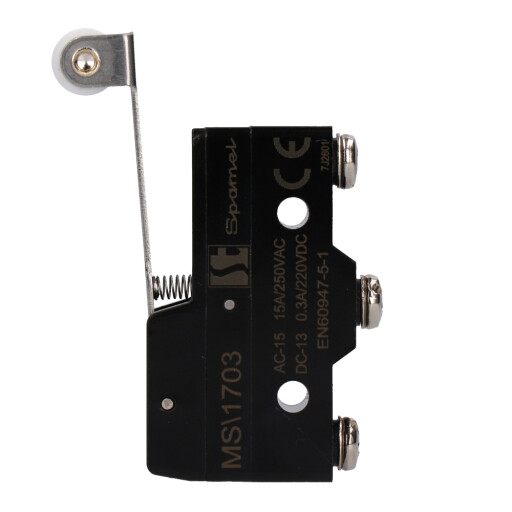

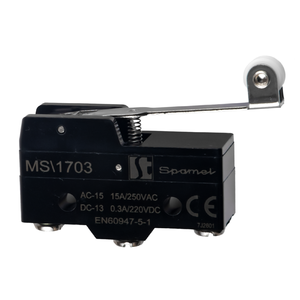

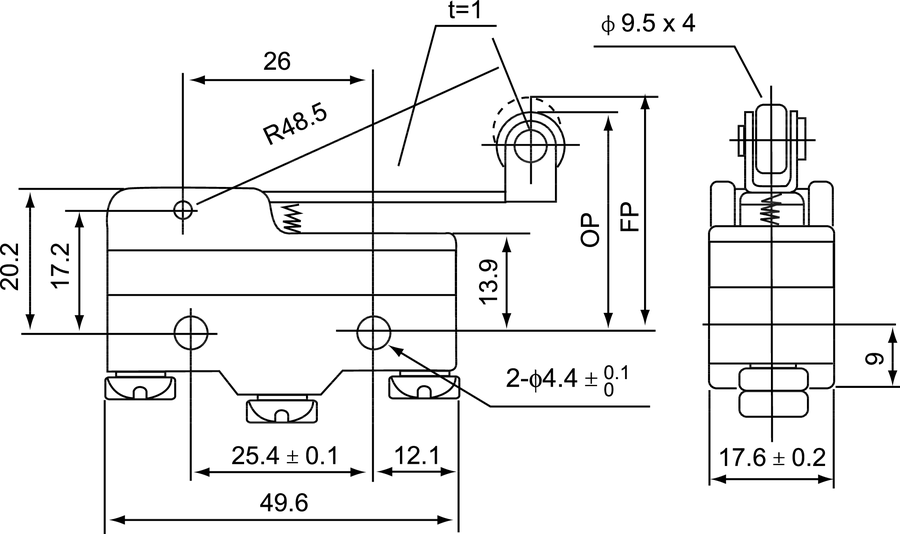

MS\1703 Miniature switch long lever with roller
Miniature switches MS
MS\1703
EAN:
Virous of actuators, action position is adjustable
High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
| Ambient temperature | General purpose type: -25 ... +80°C (with no icing) Sealed type: -15 ... +80°C (with no icing) |
| Insulation resistance | 100mΩ min. (at 500VDC) |
| Contact resistance | 15mΩ max. (initial value) |
| Operation speed | 0.01mm-1m/sec |
| Operating frequency | Mechanical: 240 operations/min. Electical: 20 operations/min. |
| Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Humidity | General purpose type: 85% RH max., Sealed type: 95% RH max. |
| Live | Mechanical: 20,000,000 operations/min. Electrical: 500,000 operations/min. |
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between each terminal and ground 1500VAC, 50/60 Hz for 1 minute between each terminal and ground |
| Max. operating force | 100 g |
| Min. releasing force | 22 g |
| Max. pre travel | 7.1 mm |
| Min. over travel | 4 mm |
| Max. movement differential | 1.02 mm |
| Max. free position | 36.5 mm |
| Operating position | 30.2±0.8 |
