E1200 - Wall junction box IP55 80 x 80 x 37 mm
Junction boxes
E#
EAN:
New

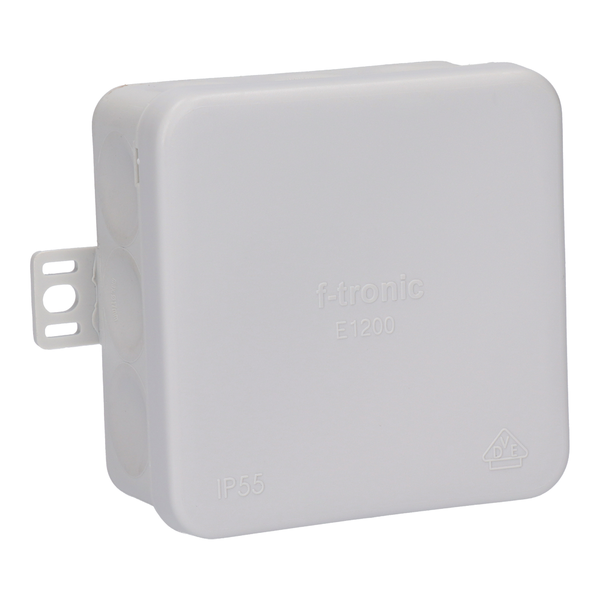

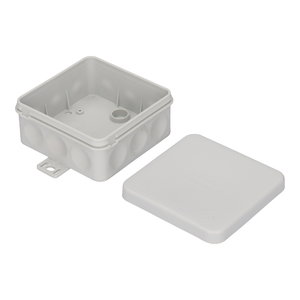

E1200 - Wall junction box (gray or white) - 80 x 80 x 37 mm
Easy to use - stable structure
Easy to mount
Easy to use - no expensive additional tools required
With integrated perforation membrane on all four sides
With rear membrane entry for cables up to 5x 2.5mm²
Easy to use - stable structure
Easy to mount
Easy to use - no expensive additional tools required
With integrated perforation membrane on all four sides
With rear membrane entry for cables up to 5x 2.5mm²
| Unit packaging | 10 |
| Carton / Pallet | 180 / 3 600 |
| Dimensions | 80 x 80 x 37 mm |
| Degree of protection | IP55 |
| Cover material | PE |
| Enclosure material | PP / TPE |
| Halogen free | yes |
| Combined weakenings | 14 |
| Side weakenings | 12 |
| Bottom weakening | 2 |
| Colour | gray / white |
| VDE | yes |
| Fastening strap | yes |
| Maximum cross-section of conductor | 2,5 mm² |
| Rated voltage | 400 V |
| Fire resistance | 650°C |
| Max. relative humidity at 25°C | 0,9 |
| Max. relative humidity at 40°C | 0,5 |
| Ambient temperature (24h) | 35°C |
| Ambient temperature | -25 ... +40°C |
Assembly
