Toggle switch disconnector RSD 63

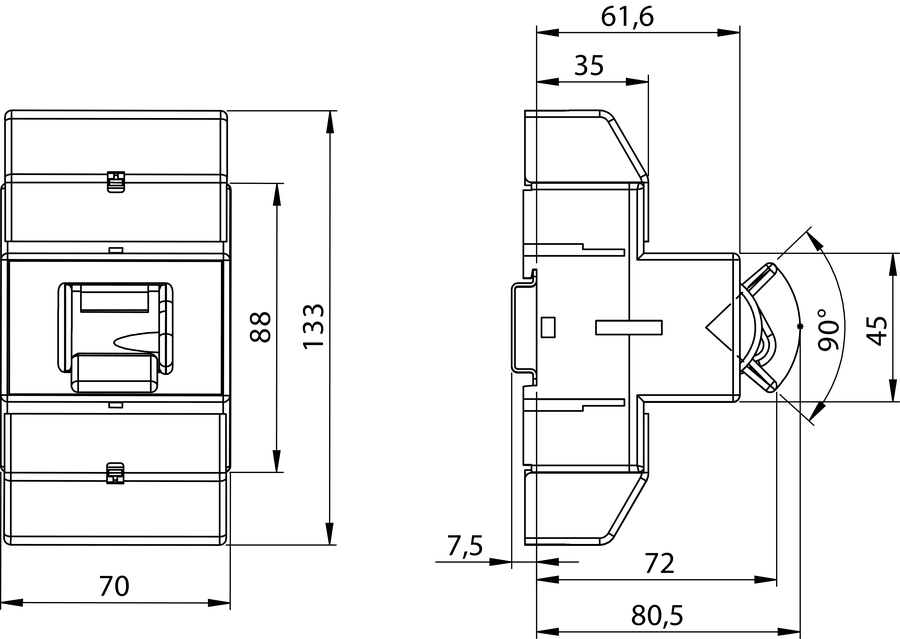

Toggle switch disconnectors RSD 63
RSD-#\#
EAN:
| Rated insulation voltage Ui | 690 V |
| Rated withstand impulse voltage Uimp | 8 kV |
| Conventional rated thermal current in the air Ith | 63 A |
| Rated operational current Ie for AC-21A, AC-22A | 63 A (690 V) |
| Rated operational current Ie for AC-23A | 63 A (400 V) 45 A (500 V) 30 A (690 V) |
| Rated power AC-23A for 3-phase standard asynchronous motors | 30 kW (400 V) 30 kW (500 V) 25 kW (690 V) |
| Rated operational current Ie for DC-21A | 63 A (220 V) |
| Rated operational current Ie for DC-22A | 40 A (220 V) |
| Rated operational current Ie for DC-23A | 30 A (220V) |
| Short-time short-circuit withstand current Icw(1s) | 1.8 kA |
| Rated short-circuit making current Icm | 6 kA |
| Rated conventional short-circuit current | 15 kA (fuse link gL/gG 63 A) |
| Mechanical endurance | 20000 (cycles) |
| Electrical endurance | 3000 (cycles) |
| Wire gauge | 6...16 mm² (solid) |
| Weight | 0.3...0.32 kg |
| Vibration test (acc. to IEC 60068-2-6) | 2...100 Hz (frequency) ± 1 mm (amplitude) ±0.7 g (acceleration) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
 |

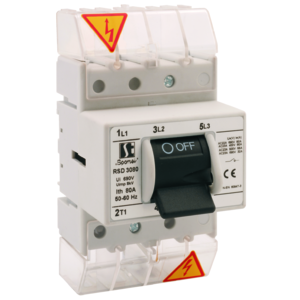

3 poles |
 |
3 poles + N non-switched |
 |

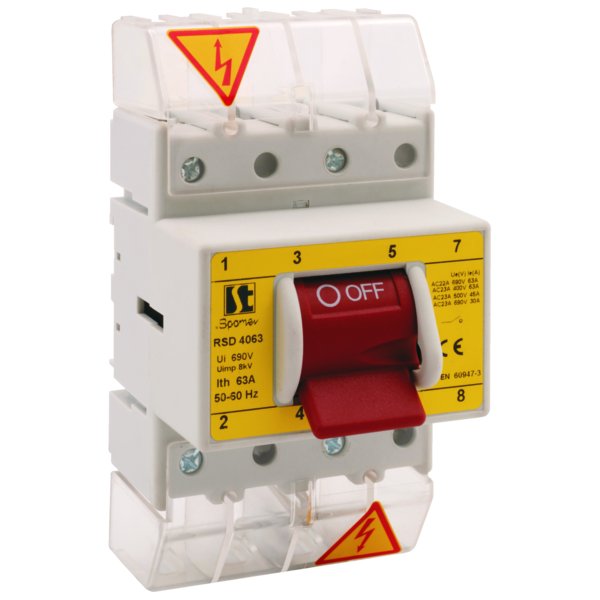

4 poles |
