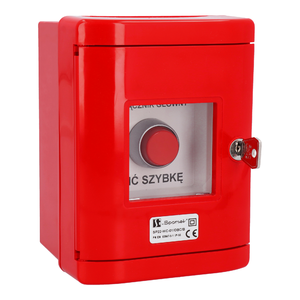

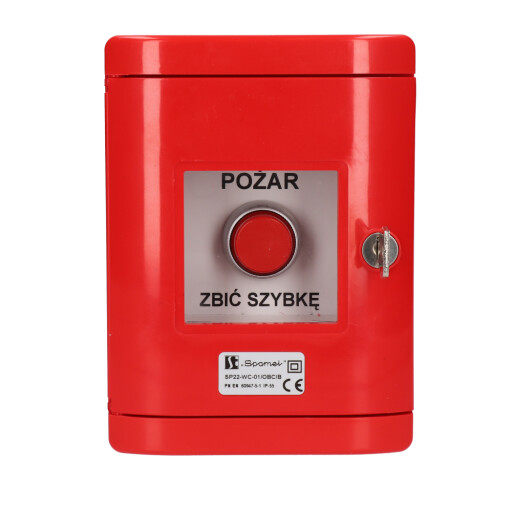

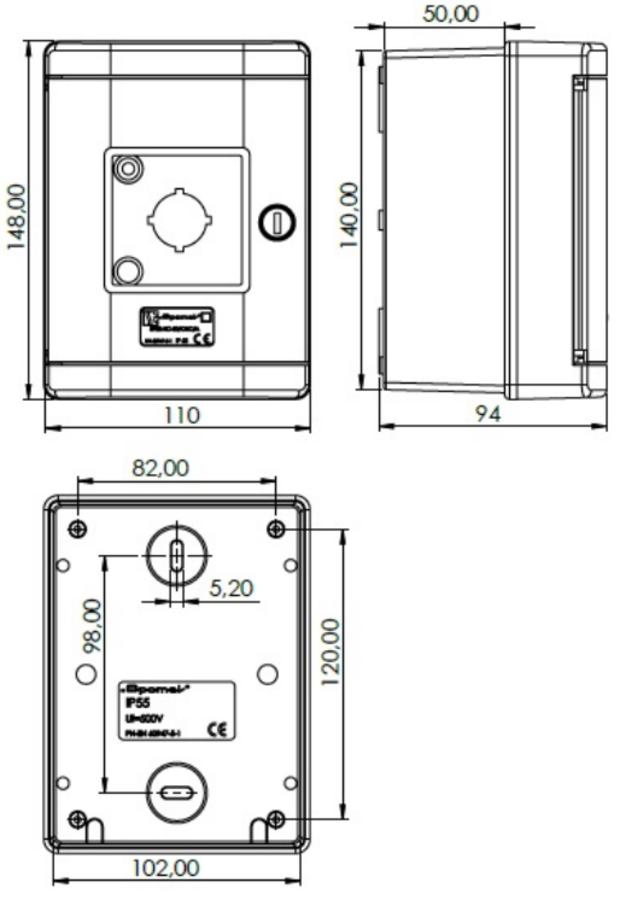

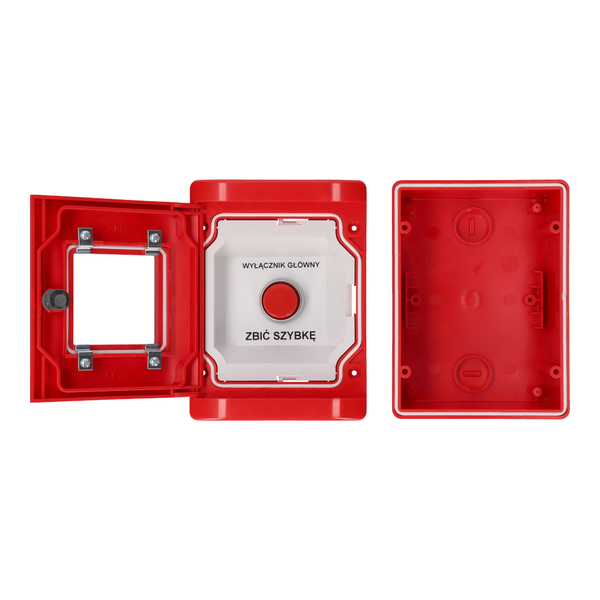

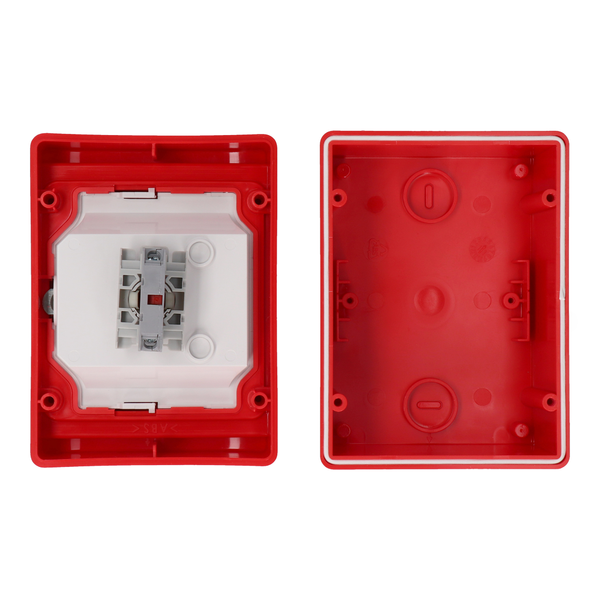

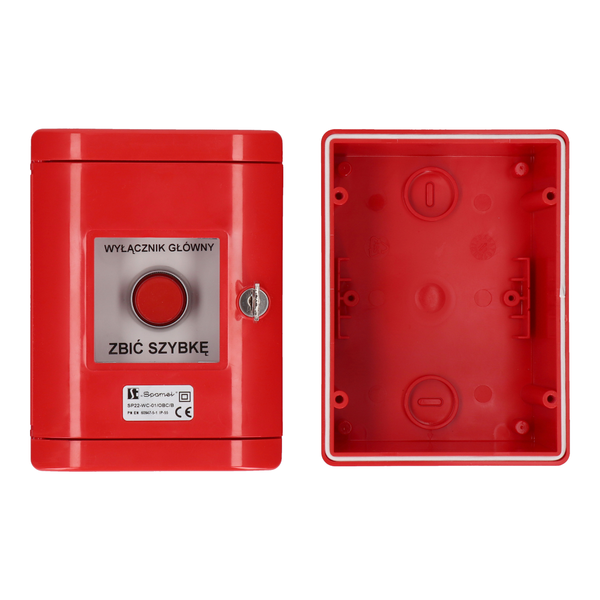

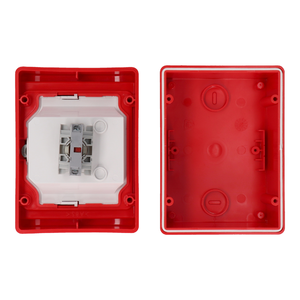

Pushbutton SP22 in break glass box
Pushbuttons in break glass box SP22
SP22-#-#\OBC/##
EAN:
Ordering examples:
SP22-WC-20\OBC/A
A red protruding button with 2 NO contacts, self-released, in a red housing.
SP22-WC-20\OBC/A/C230V
A red protruding button with 2 NO contacts, self-released, in a red housing with 1 C230V LED.
SP22-KC-20\OBC/B/2LED1
Red covered button with 2 NO contacts, after breaking the glass, the button should be pressed manually, in a red housing with 2 red C230V LEDs.
The SP22 button in a housing closed with a key with a protection degree of IP55 is a supplement to the control buttons of the SP22 series that we offer. The housing has protection class II. Depending on the actuator, buttons can have a maximum of 6 NO, NC or mixed contacts. The button in the red housing complies with the provisions of the PN-EN 60947-5-1 standard.
| Rated insulation voltage Ui | 500 V |
| Rated operational current Ie for AC-15 | 2.5 A (230 V) |
| Rated operational current Ie for AC-13 | 4 A (24 V) 1 A (110 V) 0.25 A (220 V) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Protection level (Publ. IEC529) of pushbutton actuators after mounting in panel opening | IP55 |
| Wire gauge | 2× 1...2.5 mm² (solid) 2× 0.75...1.5 mm² (stranded) |
| Compliance with the standard | PN-EN 60947-5-1 IEC 60947-5-1 IEC 60947-1 |
| 2LED7 | C230VAC+Z230VAC |
| 2LED8 | C230VAC+Z24VDC |
| 2LED10 | C24VDC+Z230VAC |
| 2LED11 | C24VDC+Z24VDC |
| 2LED7 | C230VAC+Z230VAC |
| 2LED8 | C230VAC+Z24VDC |
| 2LED10 | C24VDC+Z230VAC |
| 2LED11 | C24VDC+Z24VDC |
