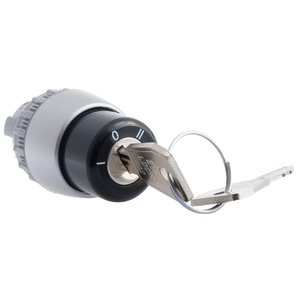

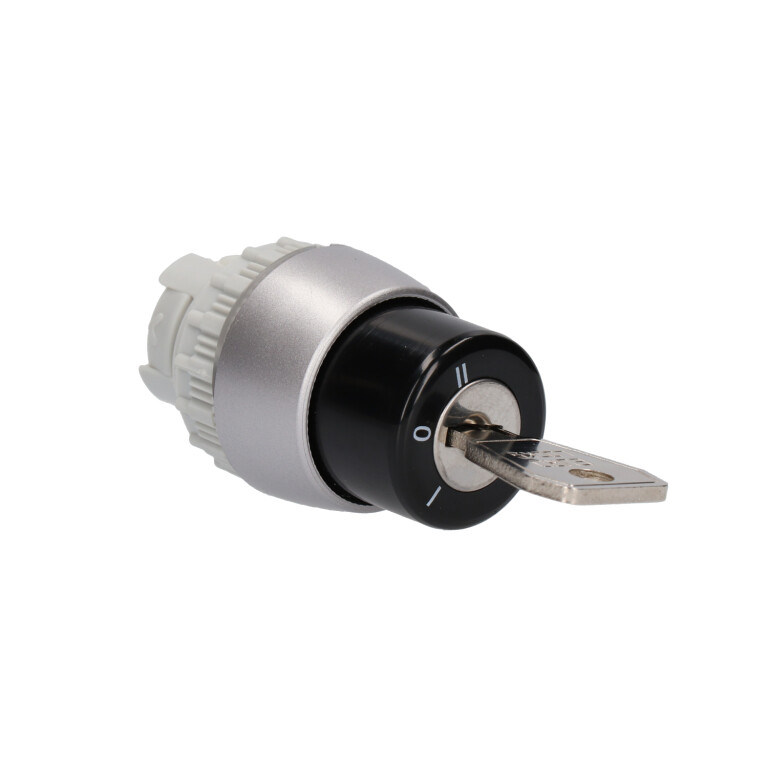

Key-operated 3-position selector switch actuator S

Actuators for non-illuminated control pushbuttons SP22

SP22-#

S1 - double pusher, divided:
in pos. "I" makes 2, 3 or 4 circuits
in pos. "II" makes 1 or 2 circuits
S2 - double pusher, divided:
in pos. "I" makes 1 or 2 circuits
in pos. "II" makes 2, 3 or 4 circuits

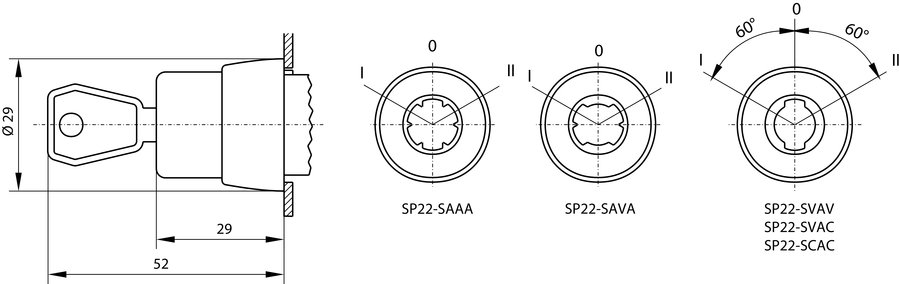

Letter A - the position in which the key can be pulled out
Letter V - the position in which the key cannot be pulled out
Letter C - the position from which the key returns automatically.

Pushbutton type:


