Compact pilot light PK22
Compact pilot lights PK22
PK22-L#-#
EAN:

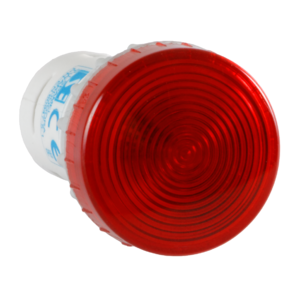

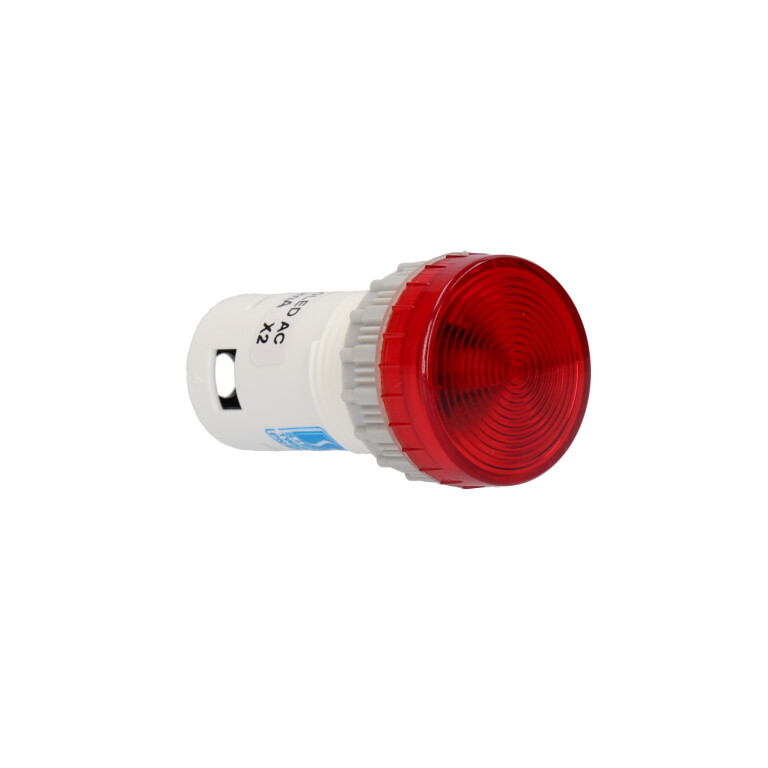

Compact pilot light PK22 is designed mainly for industry applications. It can be used for signalling specific functions in machines and other industry systems. The pilot light dimensions make it suitable to be installed in a standard panel opening 22.3 mm, 0.4 mm to 9 mm thickness, and in SP22 control stations. The source of light are LEDs with BA9S base. The compact and rigid design ensures resistance to shock and other interference typical for industry applications. Clamping elements make cable mounting durable and reliable. It is possible to change the lamp cover and LED source during the operation. The lamp cover can be replaced with one of five available colours. The light source can be replaced according to the colour and voltage. Using bulbs during operation is not recommended.
| Rated insulation voltage Ui | 500 V |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (amplitude) ±0.7 g (acceleration) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to PN-EN 60068-2-52) | severity 1 |
| Wire gauge | 2× 1...2.5 mm² (solid) 2× 0.75...1.5 mm² (stranded) |
| Lamp rated voltage | 24V DC 24 ... 230V AC |
| Lamp power rating | 1 W (LED 24/230 V) |
| Lamp base | BA9S |
| Protection level, on the panel | IP65 |
| Protection level, under the panel | IP20 |

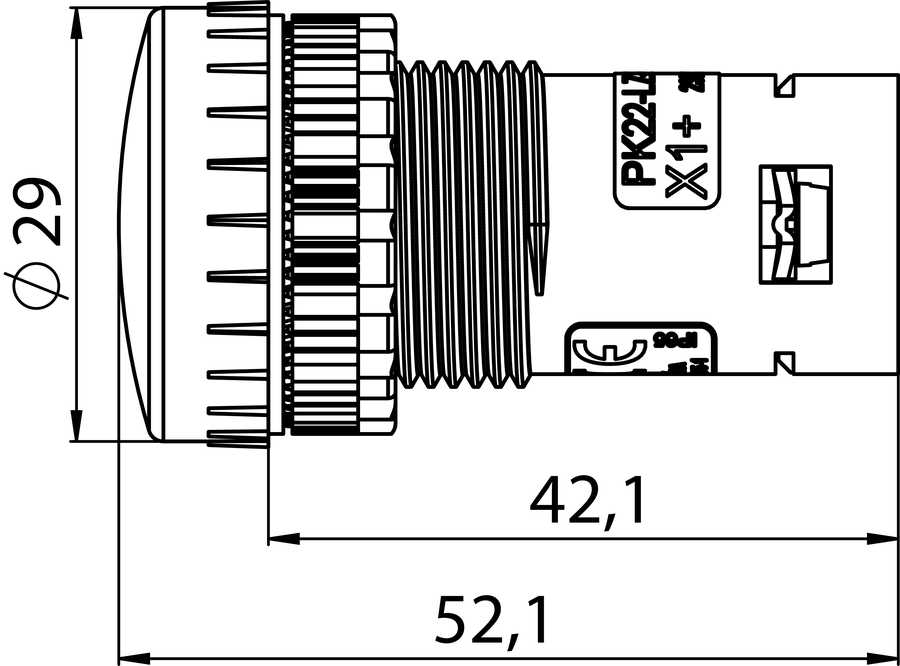

Assembly
