Switch sockets GB02
Switch sockets GB
GB02\##
EAN:
GB units are intended for industry applications. Current: 16 and 32 A. Protection level: IP44, IP67. Mechanically interlocked: the plug cannot be withdrawn when the switch is ON and the unit cannot be switched ON unless the plug is fully inserted. Padlockable. Large mounting space. The housing is made of shock-resistant composition of polycarbonate and ABS.

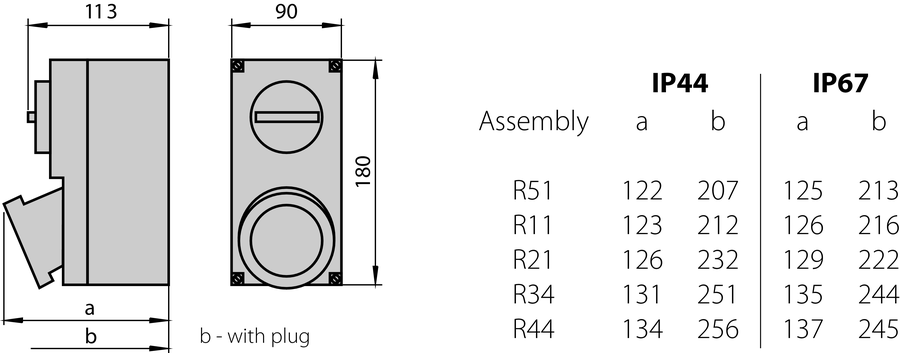

GB02 - bottom part symmetrical.
GB units are compliant with the standards: PN-EN 60439-3, PN-EN 60309-1.
GB02 - bottom part symmetrical.
GB units are compliant with the standards: PN-EN 60439-3, PN-EN 60309-1.
 |
2P+PE 16A |
 |
3P+N+PE 16A |
 |
3P+N+PE 32A |
 |
3P+PE 16A |
 |
3P+PE 32A |
