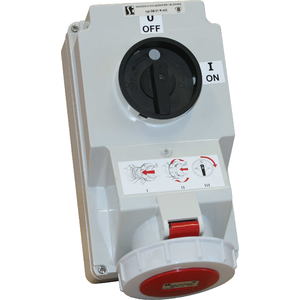

Switch sockets GB01
Switch sockets GB
GB01\##
EAN:
GB units are intended for industry applications. Current: 16 and 32 A. Protection level: IP44, IP67. Mechanically interlocked: the plug cannot be withdrawn when the switch is ON and the unit cannot be switched ON unless the plug is fully inserted. Padlockable. Large mounting space. The housing is made of shock-resistant composition of polycarbonate and ABS.

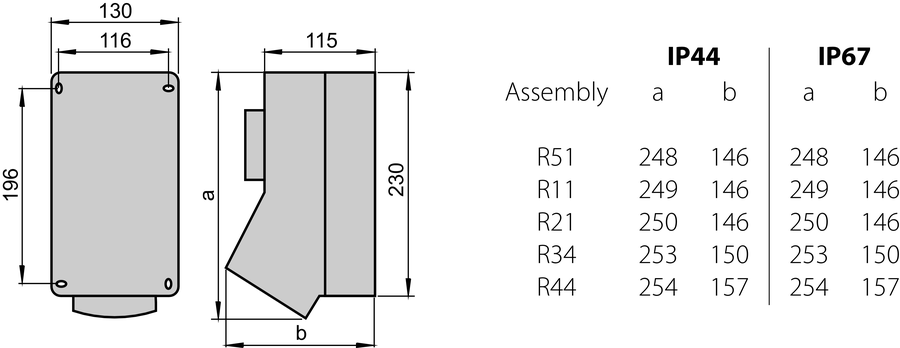

GB01 - bigger housing, feed-through optional - 30 mm distance between the housing and the mounting plate.
GB units are compliant with the standards: PN-EN 60439-3, PN-EN 60309-1.
GB01 - bigger housing, feed-through optional - 30 mm distance between the housing and the mounting plate.
GB units are compliant with the standards: PN-EN 60439-3, PN-EN 60309-1.
 |
2P+PE 16A |
 |
3P+N+PE 16A |
 |
3P+N+PE 32A |
 |
3P+PE 16A |
 |
3P+PE 32A |
