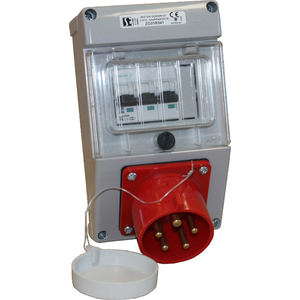

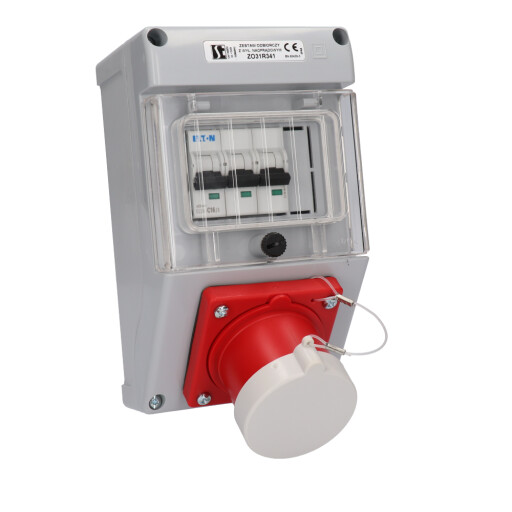

Switch receptacle ZO with miniature circuit breaker
Switch receptacles ZO
ZO#
EAN:
Type ZO3... with miniature circuit breaker protection carries out the switching function (ON/OFF). The complete device has protection level IP 44. The device is powered via the plug and controlled with the switch. Switch receptacles ZO are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1.
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
| Rated insulation voltage Ui | 500 V |
| Prąd znamionowy zestawu InA | max 32 A |
| Rated frequency | 50-60 Hz |
| Rated switching voltage Ue | 230/400 V |
| Rated withstand impulse voltage Uimp | 6 kV |
| Wire gauge | 2.5...6 mm² |
| Degree of protection | IP44 |
| Protection class | II |
| Weight | 0.5...1.0 kg |

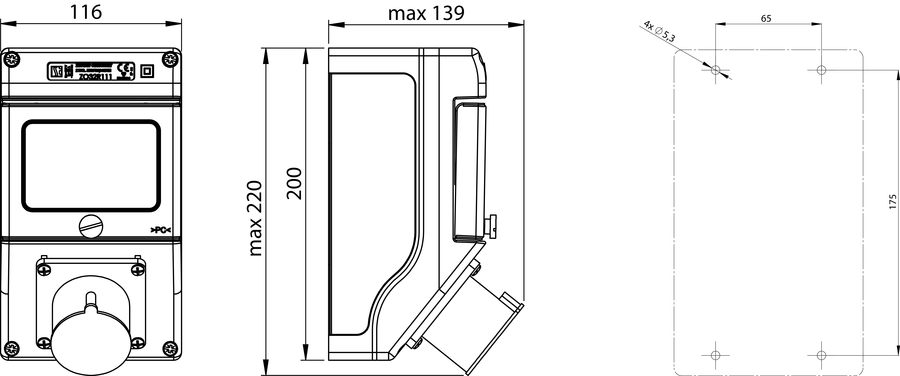

| Gland type | M25×1.5 (16 A) M32×1.5 (32 A) |
 |
3-phase overcurrent circuit breaker 16 A/C |
 |
3-phase overcurrent circuit breaker 32 A/C |
_do_gory.png) |
3P+N+PE 16A |
_do_gory.png) |

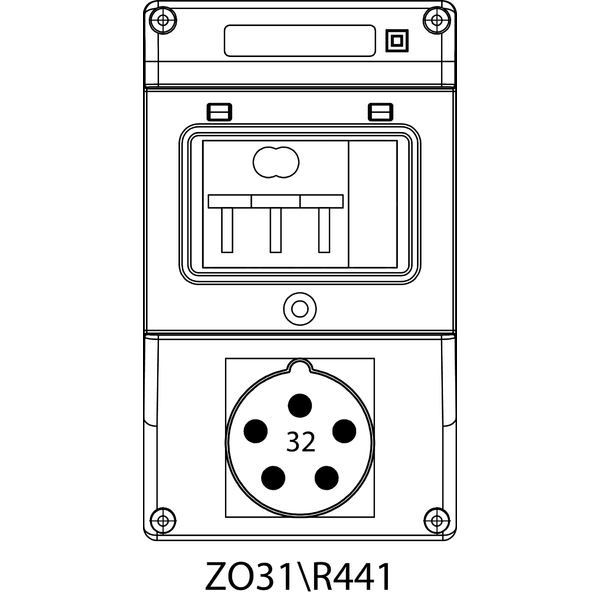

3P+N+PE 32A |
_do_gory.png) |

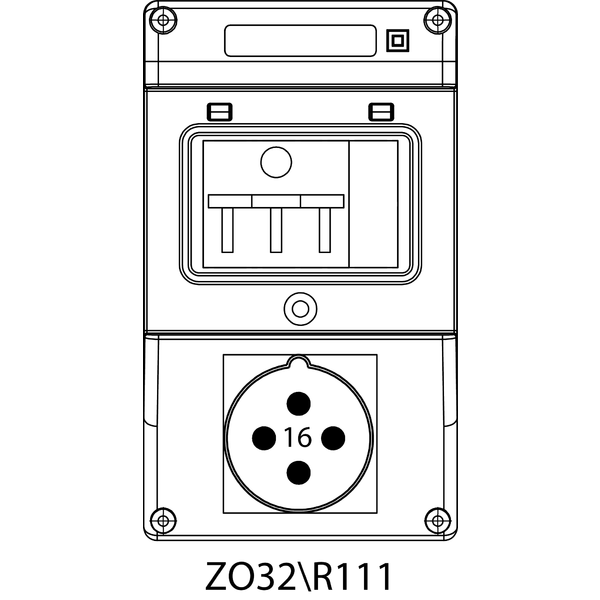

3P+PE 16A |
_do_gory.png) |

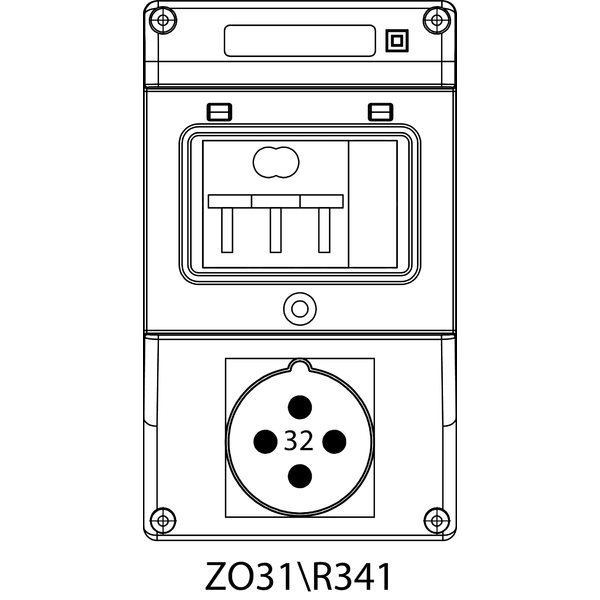

3P+PE 32A |
