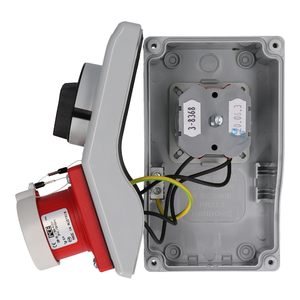

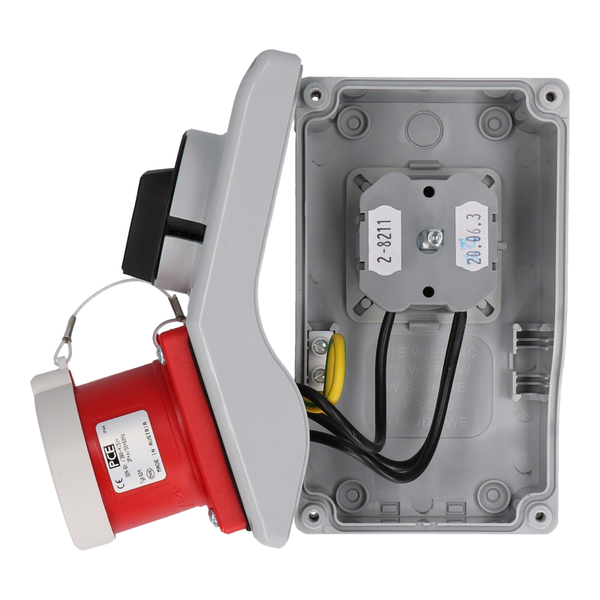

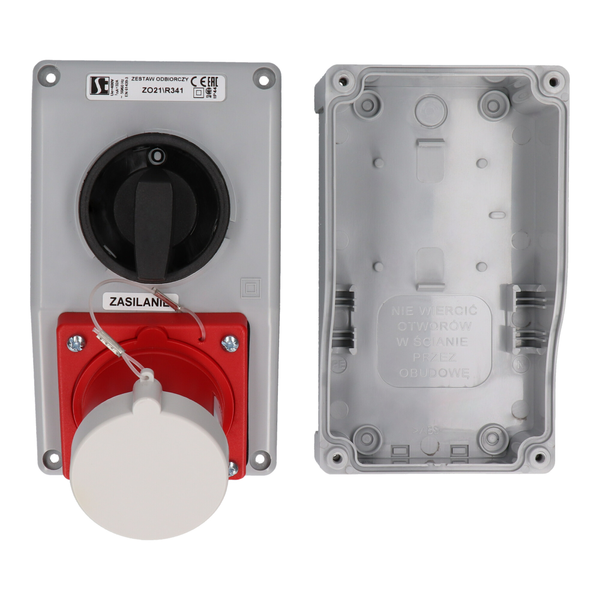

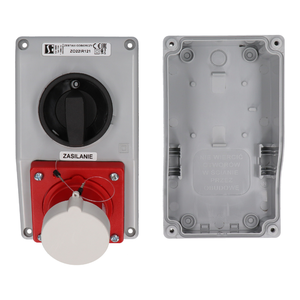

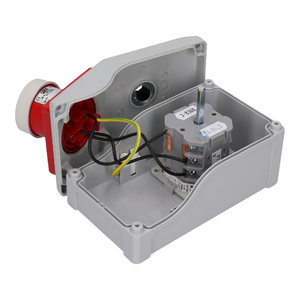

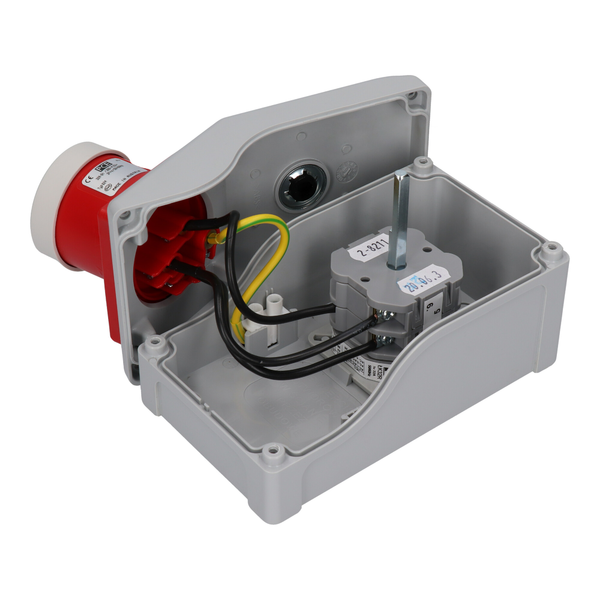

Switch receptacle ZO with disconnector
Switch receptacles ZO
ZO#
EAN:
Units ZO2... with a disconnector are used for loading and unloading the motor and reversing the rotation. The complete device has protection level IP 44. The device is powered via the plug and controlled with the disconnector. Switch receptacles ZO are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1.
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
| Rated insulation voltage Ui | 500 V |
| Prąd znamionowy zestawu InA | max 32 A |
| Rated frequency | 50-60 Hz |
| Rated switching voltage Ue | 230/400 V |
| Rated withstand impulse voltage Uimp | 6 kV |
| Wire gauge | 2.5...6 mm² |
| Degree of protection | IP44 |
| Protection class | II |
| Weight | 0.5...1.0 kg |
| Gland type | M25×1.5 (16 A) M32×1.5 (32 A) |
_do_gory.png) |
3P+N+PE 16A |
_do_gory.png) |
3P+N+PE 32A |
_do_gory.png) |
3P+PE 16A |
_do_gory.png) |
3P+PE 32A |
 |
Switch 0-I |
 |
Switch L-0-P |
