Switch socket ZI2 with disconnector 0-I

Switch socket ZI2 with disconnector 0-I

Switch sockets ZI

ZI#

Note: 1-phase side socket in installed on the right by default. It is possible to order the side socket on the left. In order to do that, please add "L", e.g. ZI23\R111L

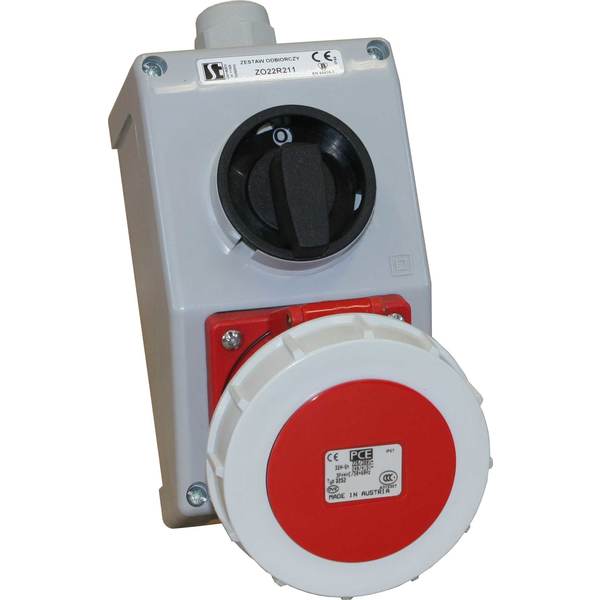

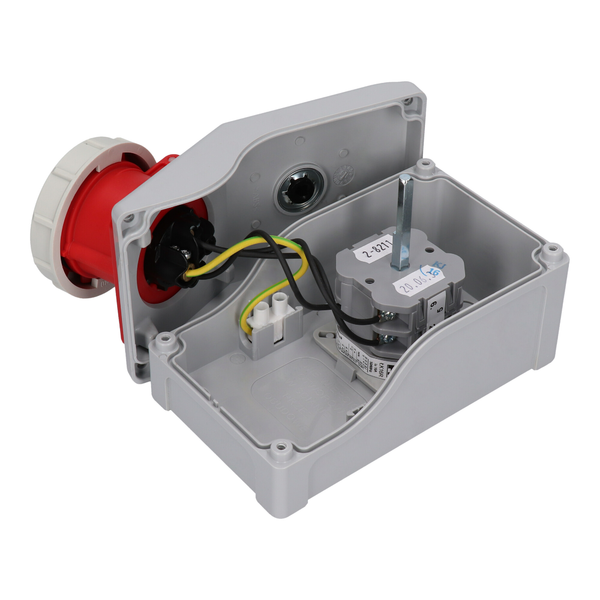

Protection level IP67 in assemblies: ZI26\R111, ZI26\R211, ZI26\R341, ZI26\R441, ZI26\R441, ZI26\R571.

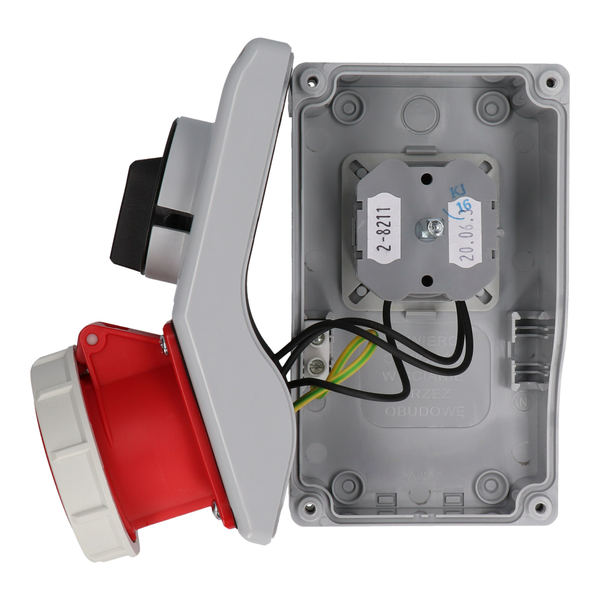

The units have modern and ergonomic design. Each unit is fitted with a main socket 16 or 32 A (depending on configuration). Switch sockets ZI with 0-I disconnector are fitted with a cam switch, a main socket and, depending on configuration, 1 or 2 side sockets (1-phase) fitted on the base plate which makes connecting the wires easier. Switch sockets ZI are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...6 mm²
Degree of protection IP44; IP65/IP67
Protection class II
Weight 0.8...1.2 kg
Gland type M25×1.5 (16 A)
M32×1.5 (32 A)
2P+PE 16A
2P+PE 16A side socket
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A
Switch 0-I

Assembly

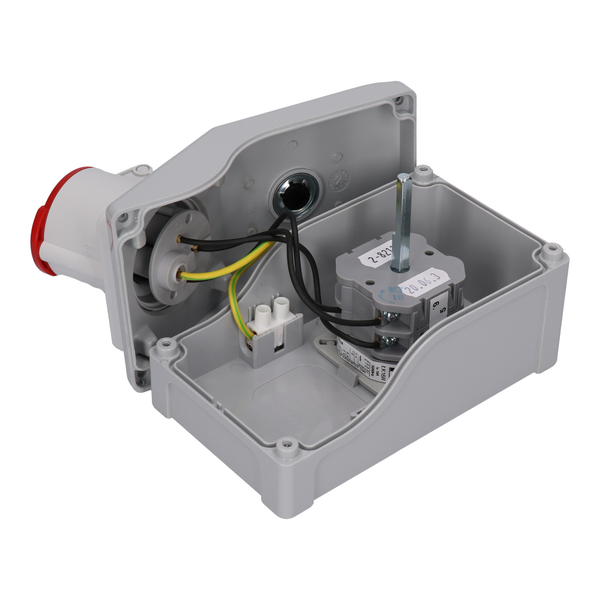

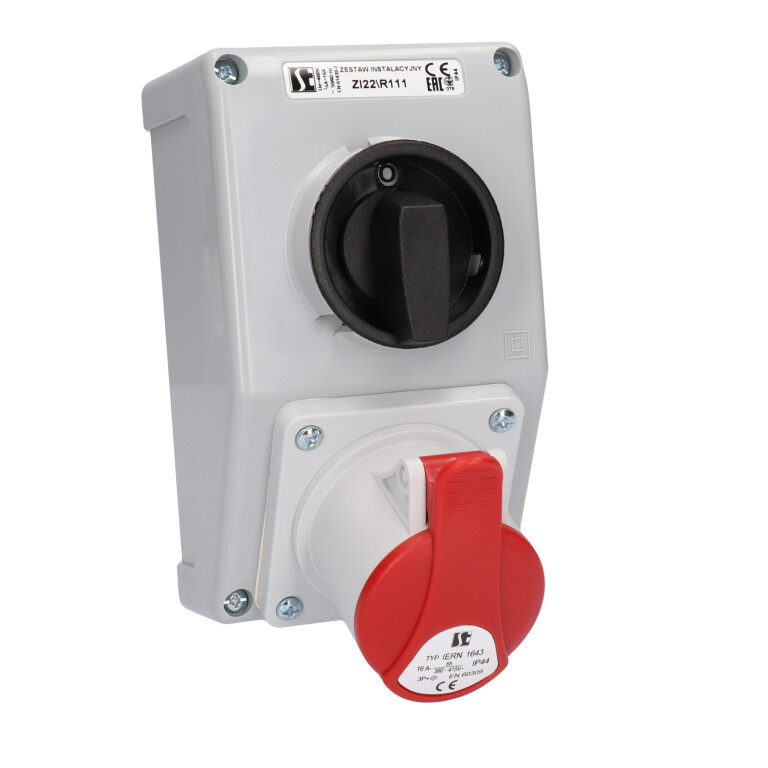

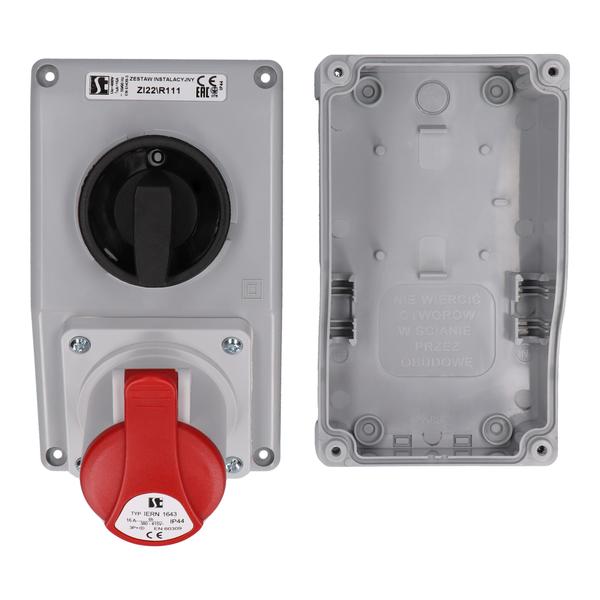

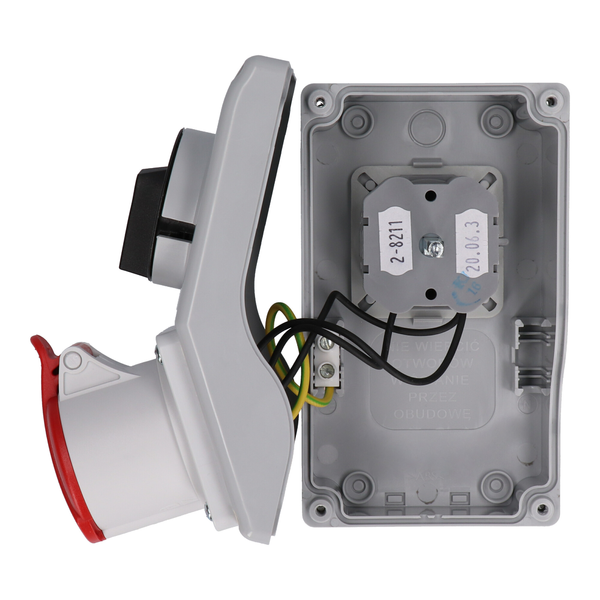

Switch socket ZI2 with disconnector 0-I - 22\R111

22\R111

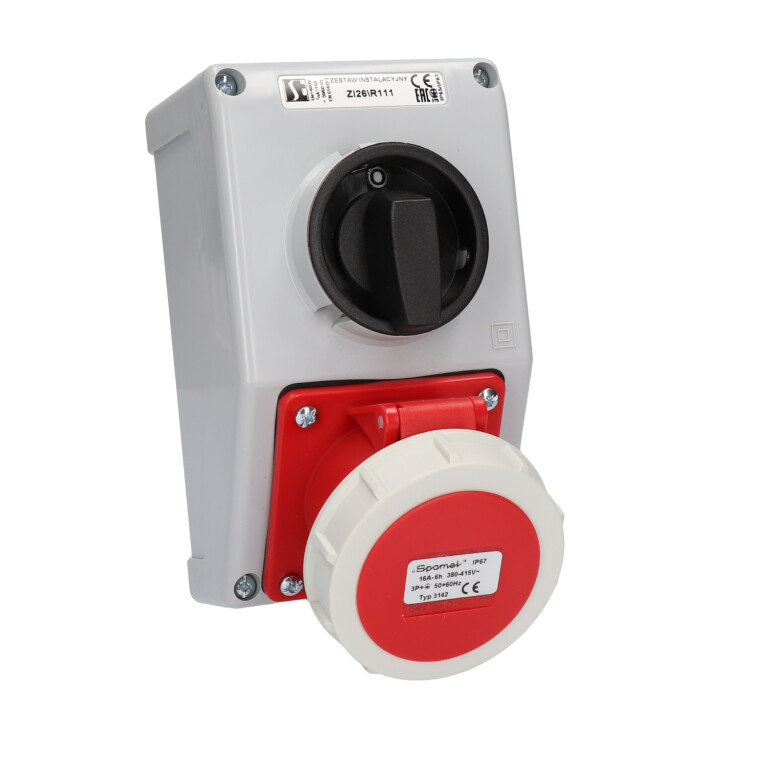

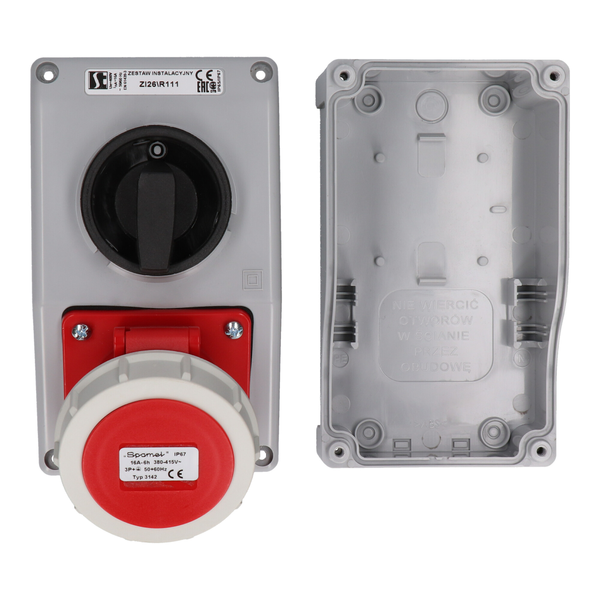

 Switch socket ZI2 with disconnector 0-I - 26\R111

26\R111

 Switch socket ZI2 with disconnector 0-I - 22\R211

22\R211

 Switch socket ZI2 with disconnector 0-I - 26\R211

26\R211

 Switch socket ZI2 with disconnector 0-I - 22\R571

22\R571

 Switch socket ZI2 with disconnector 0-I - 26\R571

26\R571

 Switch socket ZI2 with disconnector 0-I - 23\R111

23\R111

 Switch socket ZI2 with disconnector 0-I - 23\R211

23\R211

 Switch socket ZI2 with disconnector 0-I - 23\R581

23\R581

 Switch socket ZI2 with disconnector 0-I - 24\R111

24\R111

 Switch socket ZI2 with disconnector 0-I - 24\R211

24\R211

 Switch socket ZI2 with disconnector 0-I - 24\R511

24\R511

 Switch socket ZI2 with disconnector 0-I - 22\R341

22\R341

 Switch socket ZI2 with disconnector 0-I - 26\R341

26\R341

 Switch socket ZI2 with disconnector 0-I - 22\R441

22\R441

 Switch socket ZI2 with disconnector 0-I - 26\R441

26\R441

 Switch socket ZI2 with disconnector 0-I - 25\R341-B

25\R341-B

 Switch socket ZI2 with disconnector 0-I - 25\R342-B

25\R342-B

 Switch socket ZI2 with disconnector 0-I - 25\R441-B

25\R441-B

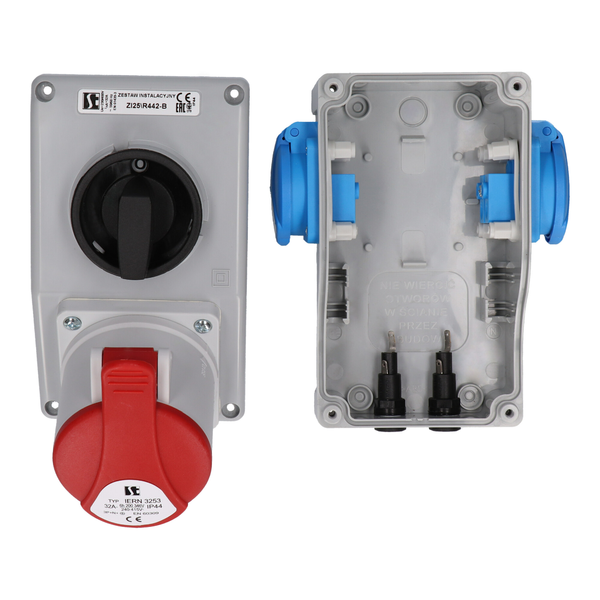

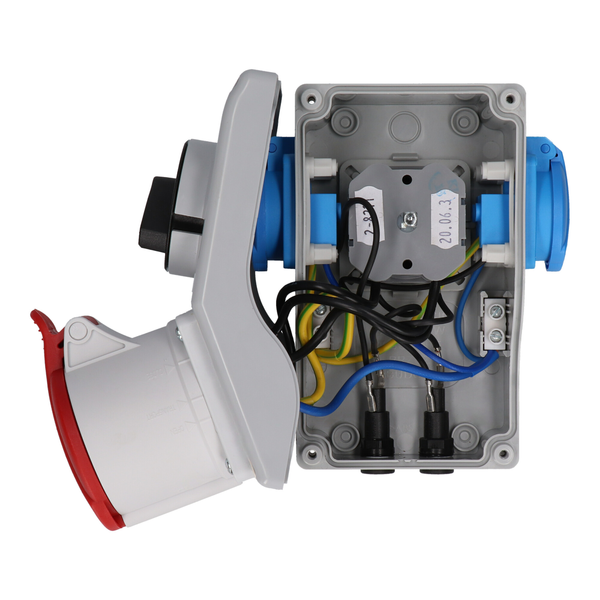

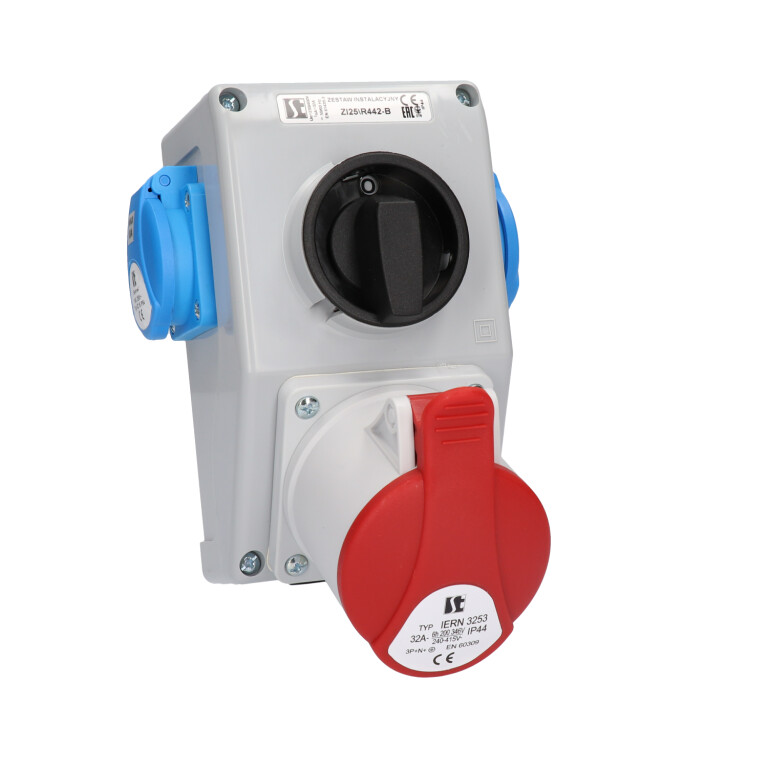

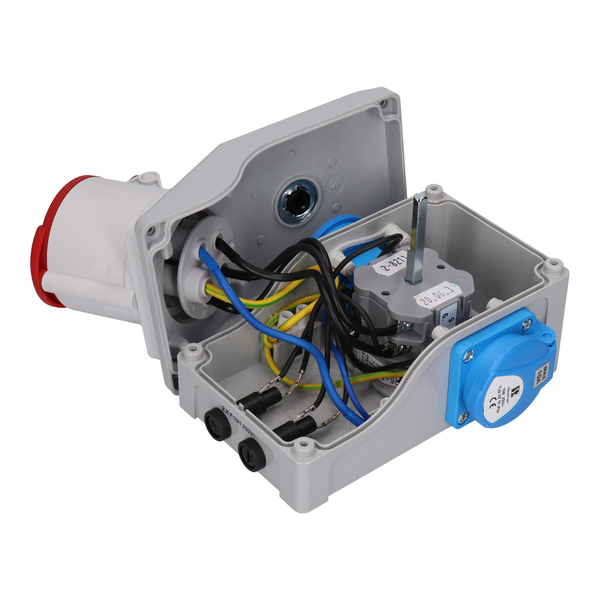

 Switch socket ZI2 with disconnector 0-I - 25\R442-B

25\R442-B

3D model

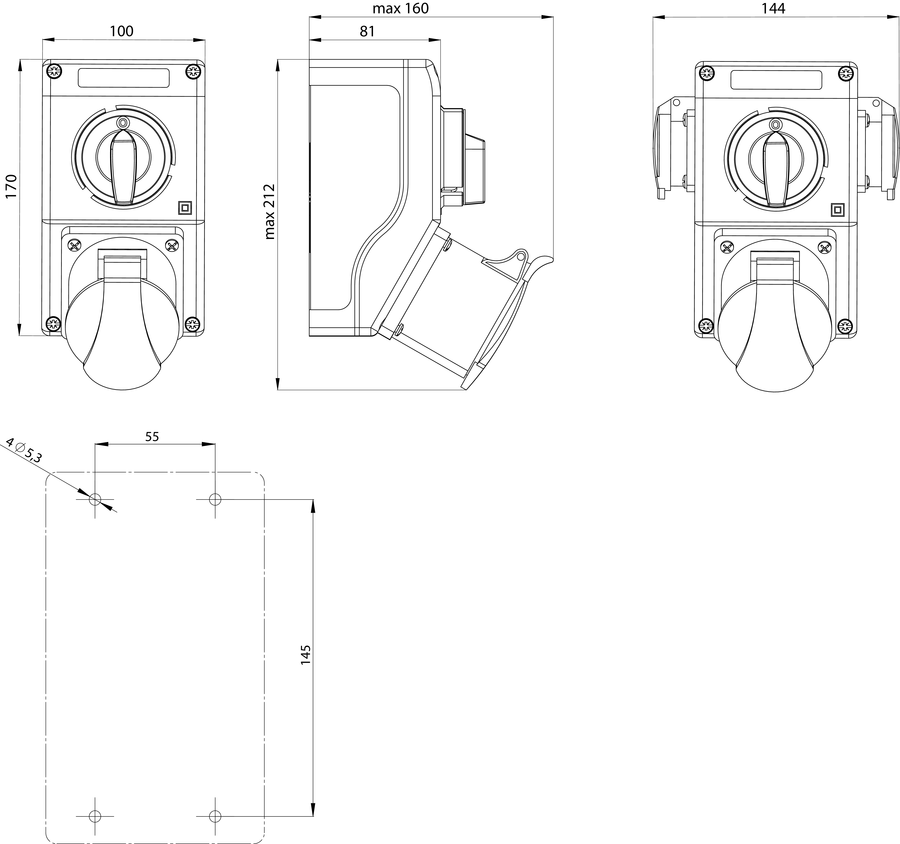

Dimensions

  • Switch socket ZI2 with disconnector 0-I - Dimensions
