SK80 D Cam switches, for building-in
Cam switches, for building-in, SK80 D
SK#-#\D##
EAN:
For special customer request it is possible to produce switches with different switching programs and without mechanical interlock.
It is recommended that TS35 rail, on which the switch will be mounted, is installed on supports (not directly on the base).
Switches of SK100 Series (for building in), mounted on a rail with the knob on the door are intended for 0-I disconnector programs with knob switching angle equal to 90° e.g. SK100/2.423-D100ZC.
Disconnectors 0-I for building in in a switching cabinet with switching angle of 90° are additionally fitted with a mechanical lock which prevents the door from opening when the actuator (knob) is in ON position.
Disconnectors 0-I for building in in a switching cabinet with switching angle of 90° are additionally fitted with a mechanical lock which prevents the door from opening when the actuator (knob) is in ON position.
| Rated insulation voltage Ue | 690 V |
| Rated withstand impulse voltage Uimp | 6 kV |
| Rated continuous current Iu | 80 A |
| Rated operational current Ic | 80 A |
| Conventional rated thermal current in the air Ith | 80 A |
| Conventional rated thermal current in the enclosure Ithe | 80 A |
| Frequency | 50/60 Hz |
| Rated operational current Ie for AC-21A, AC-22A | 80 A |
| Rated operational power Pe for AC-23A | 17 kW (230 V) 30 kW (400 V) 36 kW (500 V) 48 kW (690 V) |
| Rated operational power Pe for AC-3 | 16 kW (230 V) 22 kW (400 V) 26 kW (500 V) 36 kW (690 V) |
| Switching angle | 45°-90° |
| Short-time short-circuit withstand current Icw(1s) | 1.5 kA |
| Rated short-circuit making current Icm | 1.6 kA |
| Wire gauge | 16...35 mm² (solid) 16...25 mm² (stranded) |
| Panel mounting | □68 |
| Screws in the terminals | M6 |
| Tightening torque, wires (hold down) | 4.4 Nm |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Protection level: PN-EN 60529 to the panel | IP65 |
| Protection level of OB enclosure | IP65 |
| Degree of protection of the contact part | IP20 - terminals are protected against solid foreign objects with a diameter of ≥12.5mm (according to PN-EN 60529) |
| Pollution degree EN 60947-1 | 3 |
| Protection class in OB housing | II |
| Vibration test (acc. to IEC 60068-2-6) | 2...100 Hz (frequency) 13.2 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
| 2.423 | Disconnector 0-1 (3 - pole) |
| 2.4226 | Disconnector 0-1 (4 - pole) |
| 3.4315 | Disconnector 1-0-2 (3 - pole) |

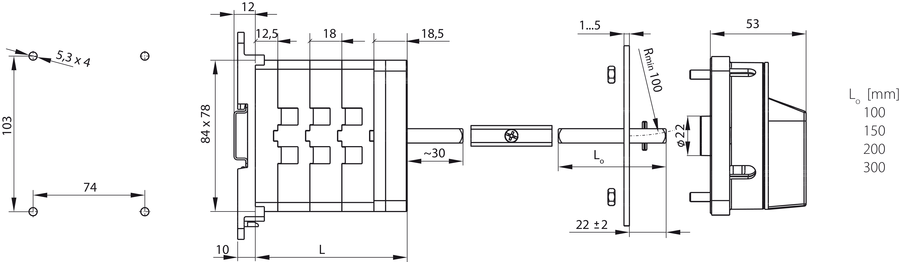

Assembly
-
-
C
-
Z
-
ZC
