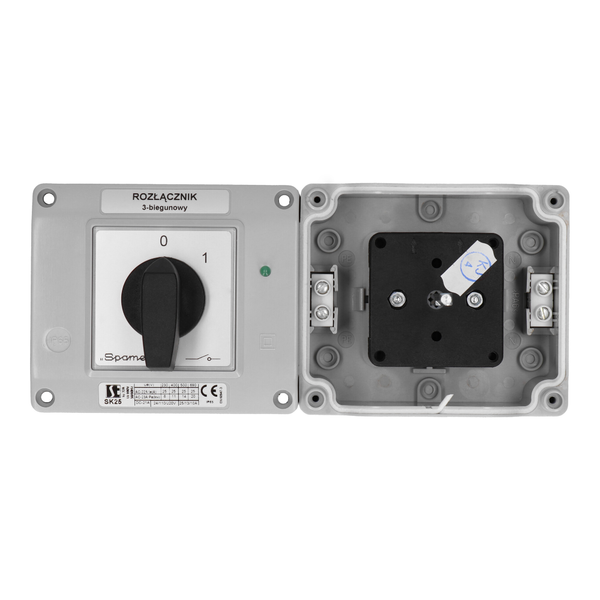

SK32 OB13L Cam switches in enclosure with a lamp
Cam switches in enclosure with a lamp SK25/32/40 OB13 L
SK#-#\#
EAN:
| Rated insulation voltage Ue | 690 V |
| Rated withstand impulse voltage Uimp | 4 kV |
| Rated continuous current Iu=Ith | 40 A |
| Rated operational current Ie for AC-21A, AC-22A | 32 A (230/400/500/690 V) |
| Rated operational power Pe for AC-23A | 7.5 kW (230 V) 13 kW (400 V) 16 kW (500 V) 22 kW (690 V) |
| Rated operational power Pe for AC-3 | 6 kW (230 V) 10 kW (400 V) 12 kW (500 V) 17 kW (690 V) |
| Rated operational current Ie for DC-21A | 32 A (24 V) 16 A (110 V) 12 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 0.5 kA |
| Rated short-circuit making current Icm | 0.7 kA |
| Rated conventional short-circuit current | 10 kA |
| Rated current fuse link gG | 35 A |
| Wire gauge | 4...10 mm² |
| Tightening torque, terminals | 1.2 Nm |
| Panel mounting | □48 |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Protection level: PN-EN 60529 to the panel | IP65 |
| Protection level of OB enclosure | IP65 |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
| Number of segments in the switch | 1 ... 4 |
| 1.825 | Disconnector 0-1 (1 - pole) |
| 1.828 | Disconnector 0-1 (2 - pole) |
| 2.8211 | Disconnector 0-1 (3 - pole) |
| 2.8210 | Disconnector 0-1 (4 - pole) |
| 3.8220 | Disconnector 0-1 (5 - pole) |
| 3.8210 | Disconnector 0-1 (6 - pole) |
| 4.8240 | Disconnector 0-1 (7 - pole) |
| 4.824 | Disconnector 0-1 (8 - pole) |
