SK16 S10 Cam switches with masking plate module

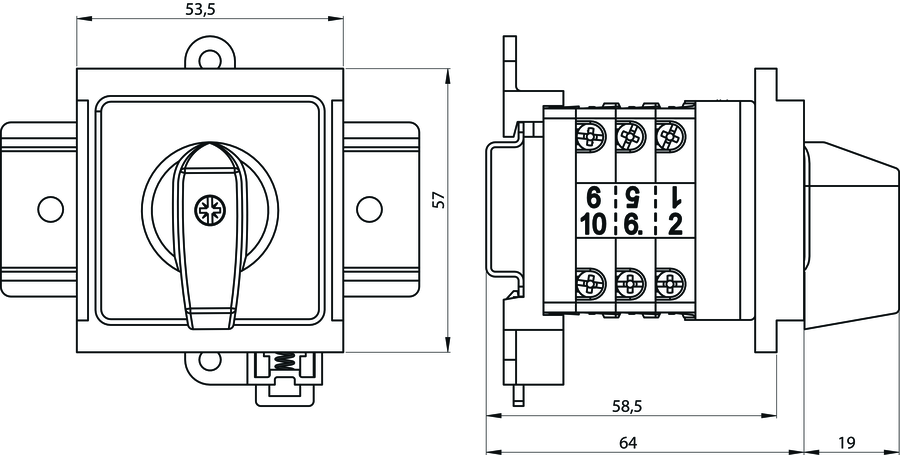

Cam switches with masking plate module SK10/16/20 S10
SK#-#\S10
EAN:
| Rated insulation voltage Ue | 690 V |
| Rated withstand impulse voltage Uimp | 4 kV |
| Rated continuous current Iu=Ith | 20 A |
| Rated operational current Ie for AC-21A, AC-22A | 16 A (230/400/500/690 V) |
| Rated operational power Pe for AC-23A | 3 kW (230 V) 5 kW (400 V) 6 kW (500 V) 8 kW (690 V) |
| Rated operational power Pe for AC-3 | 2 kW (230 V) 3.5 kW (400 V) 4 kW (500 V) 6 kW (690 V) |
| Rated operational current Ie for DC-21A | 16 A (24 V) 8 A (110 V) 6 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 0.25 kA |
| Rated short-circuit making current Icm | 0.34 kA |
| Rated conventional short-circuit current | 10 kA |
| Rated current fuse link gG | 16 A |
| Wire gauge | 1...4 mm² |
| Tightening torque, terminals | 0.5 Nm |
| Panel mounting | 31/□36 |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Protection level: PN-EN 60529 to the panel | IP65 |
| Protection level of OB enclosure | IP65 |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
| Number of segments in the switch | 2 ... 3 |
| 1.825 | Disconnector 0-1 (1 - pole) |
| 1.828 | Disconnector 0-1 (2 - pole) |
| 2.8211 | Disconnector 0-1 (3 - pole) |
| 2.8210 | Disconnector 0-1 (4 - pole) |
| 1.834 | Disconnector 1-0-2 (1 - pole) |
| 2.8338 | Disconnector 1-0-2 (2 - pole) |
| 3.8380 | Disconnector 1-0-2 (3 - pole) |
