SK16G BS Cam switches, base-rail mounted
Cam switches, base-rail mounted, SK 10G/16G/20G BS
SK#-#\#
EAN:
| Rated insulation voltage Ue | 690 V |
| Rated withstand impulse voltage Uimp | 4 kV |
| Rated continuous current Iu=Ith | 20 A |
| Rated operational current Ie for AC-21A, AC-22A | 16 A (230/400/500/690 V) |
| Rated operational power Pe for AC-23A | 3 kW (230 V) 5 kW (400 V) 6 kW (500 V) 8 kW (690 V) |
| Rated operational power Pe for AC-3 | 2 kW (230 V) 3.5 kW (400 V) 4 kW (500 V) 6 kW (690 V) |
| Rated operational current Ie for DC-21A | 16 A (24 V) 8 A (110 V) 6 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 0.5 kA |
| Rated short-circuit making current Icm | 0.7 kA |
| Rated conventional short-circuit current | 10 kA |
| Rated current fuse link gG | 16 A |
| Wire gauge | 1,0...2,5 mm² (solid, stranded) |
| Tightening torque, terminals | max 0.8 Nm |
| Panel mounting | 31/□36 |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Number of segments in the switch | 1 ... 8 |
| 1.825 | Disconnector 0-1 (1 - pole) |
| 1.828 | Disconnector 0-1 (2 - pole) |
| 2.8211 | Disconnector 0-1 (3 - pole) |
| 2.8210 | Disconnector 0-1 (4 - pole) |
| 3.8220 | Disconnector 0-1 (5 - pole) |
| 3.8210 | Disconnector 0-1 (6 - pole) |
| 4.8240 | Disconnector 0-1 (7 - pole) |
| 4.824 | Disconnector 0-1 (8 - pole) |
| 5.8220 | Disconnector 0-1 (9 - pole) |
| 5.822 | Disconnector 0-1 (10 - pole) |
| 6.8210 | Disconnector 0-1 (11 - pole) |
| 6.821 | Disconnector 0-1 (12 - pole) |
| 7.8220 | Disconnector 0-1 (13 - pole) |
| 7.822 | Disconnector 0-1 (14 - pole) |
| 8.8270 | Disconnector 0-1 (15 - pole) |
| 8.827 | Disconnector 0-1 (16 - pole) |
| 3.8368 | Reversing switch L-0-P |
| 3.83139 | 2-speed switch 2 separate windings |
| 4.8390 | 2-speed Dahlander switch |
| 7.8538 | 2-speed reversing Dahlander switch |
| 4.831 | 3-phase starting switch 0-Y-∆ |
| 5.8538 | 3-phase starting reversing switch |
| 6.4470 | 3-speed Dahlander switch single winding for low speed |
| 6.4480 | 3-speed Dahlander switch single winding for medium speed |
| 6.4490 | 3-speed Dahlander switch single winding for high speed |
| 4.883 | Voltmeter selector switch |
| 2.4414 | Rotary disconnector 0-1 |
| 2.8445 | Control switch 0-1-2-3 |
| 1.834 | Disconnector 1-0-2 (1 - pole) |
| 2.8338 | Disconnector 1-0-2 (2 - pole) |
| 3.8380 | Disconnector 1-0-2 (3 - pole) |
| 4.8396 | Disconnector 1-0-2 (4 - pole) |
| 5.8380 | Disconnector 1-0-2 (5 - pole) |
| 6.8380 | Disconnector 1-0-2 (6 - pole) |
| 7.8380 | Disconnector 1-0-2 (7 - pole) |
| 8.8380 | Disconnector 1-0-2 (8 - pole) |
Assembly
3D model

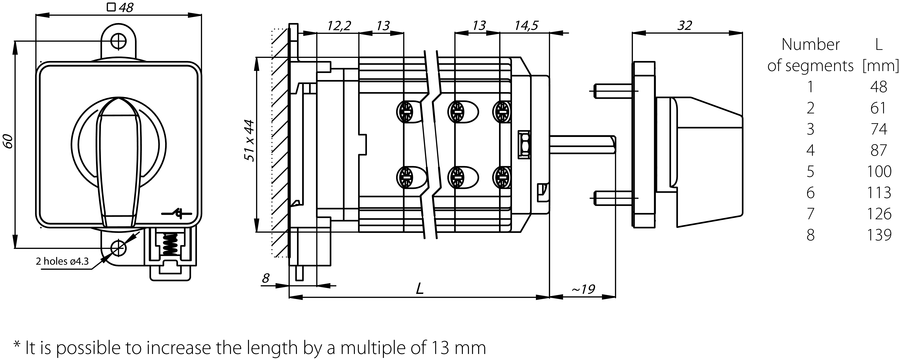

Dimensions

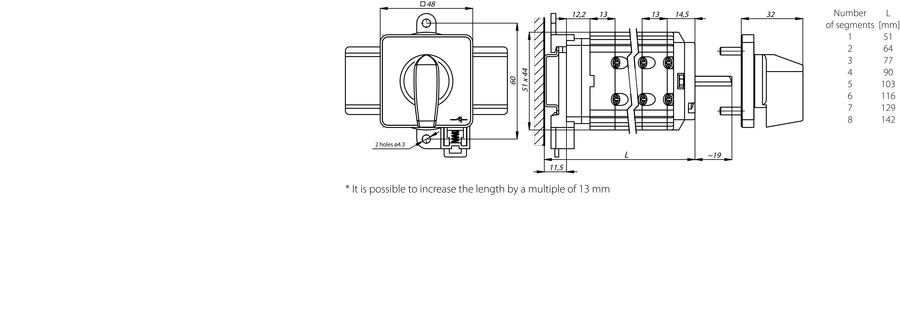

Snap-on mounting on TS35 rail
