Panel-mounted switches with an adaptor ŁK 16R/25R/32R A/A30

ŁK#R-#\#
Switches of A and A30 Series do not have a legend plate and are only fitted with a knob. These switches are mainly dedicated for special purpose devices (e.g welding machines), where the marking of each switching position is printed (e.g. in silk screen printing process) on the front panel to which the switch is fitted.
Rated insulation voltage Ui 690 V
Rated withstand impulse voltage Uimp 6 kV
Rated continuous current Iu=Ith 32 A
Rated operational power Pe for AC-3 9 kW (230 V)
15 kW (400 V)
15 kW (690V)
Rated operational power Pe for AC-4 6 kW (230 V)
10 kW (400 V)
7.5 kW (690 V)
Rated operational current Ie for AC-3 32 A (230 V)
28 A (400 V)
16 A (690 V)
Rated operational current Ie for AC-4 20 A (230 V)
20 A (400 V)
8 A (690 V)
Short-time short-circuit withstand current Icw(1s) 1 kA
Rated short-circuit making current Icm 1.4 kA
Rated conventional short-circuit current 12 kA
Rated current fuse link gG 32 A
Tightening torque, terminals 1.2 Nm
Mechanical endurance 3.0 mln (transposition cycles)
Ambient temperature -40 ... +70°C (work)
-40 ... +70°C (storage)
Wire gauge 4...6 mm²
Protection level: PN-EN 60529 to the panel IP65
Vibration test (acc. to IEC 60068-2-6) 2...13, 2...100 Hz (frequency)
± 1 mm (acceleration amplitude)
±0.7 g (acceleration amplitude)
Shock test (acc. to IEC 60068-2-27) 15 g (peak acceleration)
11 ms (impulse duration)
Damp heat cyclic test (acc. to IEC 60068-2-30) 55°C (ambient temperature)
95% (relative humidity)
Salt mist cyclic test (acc. to IEC 60068-2-52) severity 1
Number of segments in the switch 1 ... 8
bespoke assembly

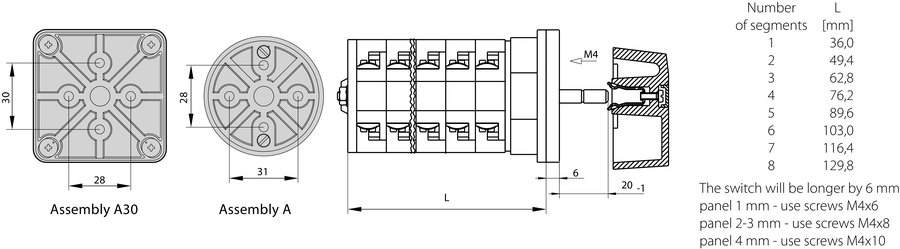

Dimensions
