ŁK25R S Cam switches, rail mounted
Cam switches, rail mounted, ŁK 16R/25R/32R S
ŁK#R-#\#
EAN:
| Rated insulation voltage Ui | 690 V |
| Rated withstand impulse voltage Uimp | 6 kV |
| Rated continuous current Iu=Ith | 25 A |
| Rated operational power Pe for AC-3 | 7 kW (230 V) 13 kW (400 V) 10 kW (690 V) |
| Rated operational power Pe for AC-4 | 6 kW (230 V) 8 kW (400 V) 7 kW (690 V) |
| Rated operational current Ie for AC-3 | 25 A (230 V) 25 A (400 V) 14 A (690 V) |
| Rated operational current Ie for AC-4 | 20 A (230 V) 16 A (400 V) 8 A (690 V) |
| Rated operational current Ie for DC-21 | 12 A (110 V) 3 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 1 kA |
| Rated short-circuit making current Icm | 1.4 kA |
| Rated conventional short-circuit current | 13 kA |
| Rated current fuse link gG | 25 A |
| Tightening torque, terminals | 1.2 Nm |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Wire gauge | 2.5...6 mm² |
| Protection level: PN-EN 60529 to the panel | IP65 |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |

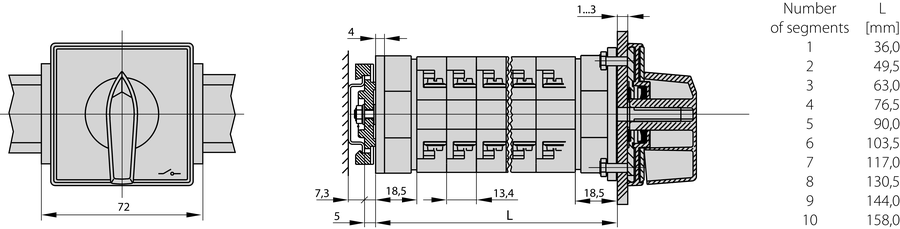

| Number of segments in the switch | 1 ... 10 |
| 1.825 | Disconnector 0-1 (1 - pole) |
| 1.828 | Disconnector 0-1 (2 - pole) |
| 2.8211 | Disconnector 0-1 (3 - pole) |
| 2.8210 | Disconnector 0-1 (4 - pole) |
| 3.8220 | Disconnector 0-1 (5 - pole) |
| 3.8210 | Disconnector 0-1 (6 - pole) |
| 4.8240 | Disconnector 0-1 (7 - pole) |
| 4.824 | Disconnector 0-1 (8 - pole) |
| 5.8220 | Disconnector 0-1 (9 - pole) |
| 5.822 | Disconnector 0-1 (10 - pole) |
| 6.8210 | Disconnector 0-1 (11 - pole) |
| 6.821 | Disconnector 0-1 (12 - pole) |
| 7.8220 | Disconnector 0-1 (13 - pole) |
| 7.822 | Disconnector 0-1 (14 - pole) |
| 8.8270 | Disconnector 0-1 (15 - pole) |
| 8.827 | Disconnector 0-1 (16 - pole) |
| 9.8210 | Disconnector 0-1 (17 - pole) |
| 9.821 | Disconnector 0-1 (18 - pole) |
| 10.8210 | Disconnector 0-1 (19 - pole) |
| 10.821 | Disconnector 0-1 (20 - pole) |
| 3.8368 | Reversing switch L-0-P |
| 3.83139 | 2-speed switch 2 separate windings |
| 4.8390 | 2-speed Dahlander switch |
| 7.8538 | 2-speed reversing Dahlander switch |
| 4.831 | 3-phase starting switch 0-Y-∆ |
| 5.8538 | 3-phase starting reversing switch |
| 6.4470 | 3-speed Dahlander switch single winding for low speed |
| 6.4480 | 3-speed Dahlander switch single winding for medium speed |
| 6.4490 | 3-speed Dahlander switch single winding for high speed |
| 4.883 | Voltmeter selector switch |
| 2.4414 | Rotary disconnector 0-1 |
| 2.8445 | Control switch 0-1-2-3 |
| 1.834 | Disconnector 1-0-2 (1 - pole) |
| 2.8338 | Disconnector 1-0-2 (2 - pole) |
| 3.8380 | Disconnector 1-0-2 (3 - pole) |
| 4.8396 | Disconnector 1-0-2 (4 - pole) |
| 5.8380 | Disconnector 1-0-2 (5 - pole) |
| 6.8380 | Disconnector 1-0-2 (6 - pole) |
| 7.8380 | Disconnector 1-0-2 (7 - pole) |
| 8.8380 | Disconnector 1-0-2 (8 - pole) |
| 9.8380 | Disconnector 1-0-2 (9 - pole) |
| 10.8380 | Disconnector 1-0-2 (10 - pole) |
