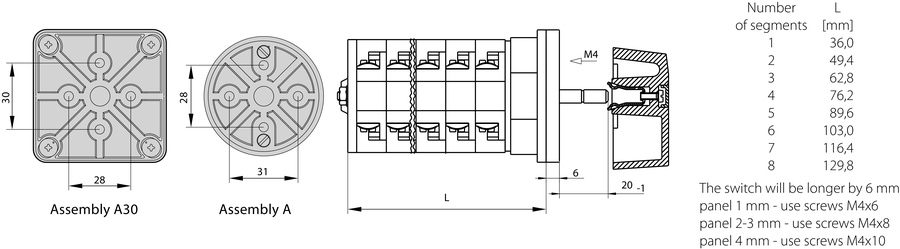

ŁK25R A/A30 Panel-mounted switches with an adaptor
Panel-mounted switches with an adaptor ŁK 16R/25R/32R A/A30
ŁK#R-#\#
EAN:
Switches of A and A30 Series do not have a legend plate and are only fitted with a knob. These switches are mainly dedicated for special purpose devices (e.g welding machines), where the marking of each switching position is printed (e.g. in silk screen printing process) on the front panel to which the switch is fitted.
| Rated insulation voltage Ui | 690 V |
| Rated withstand impulse voltage Uimp | 6 kV |
| Rated continuous current Iu=Ith | 25 A |
| Rated operational power Pe for AC-3 | 7 kW (230 V) 13 kW (400 V) 10 kW (690 V) |
| Rated operational power Pe for AC-4 | 6 kW (230 V) 8 kW (400 V) 7 kW (690 V) |
| Rated operational current Ie for AC-3 | 25 A (230 V) 25 A (400 V) 14 A (690 V) |
| Rated operational current Ie for AC-4 | 20 A (230 V) 16 A (400 V) 8 A (690 V) |
| Rated operational current Ie for DC-21 | 12 A (110 V) 3 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 1 kA |
| Rated short-circuit making current Icm | 1.4 kA |
| Rated conventional short-circuit current | 13 kA |
| Rated current fuse link gG | 25 A |
| Tightening torque, terminals | 1.2 Nm |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Wire gauge | 2.5...6 mm² |
| Protection level: PN-EN 60529 to the panel | IP65 |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
| Number of segments in the switch | 1 ... 8 |
| bespoke assembly |
